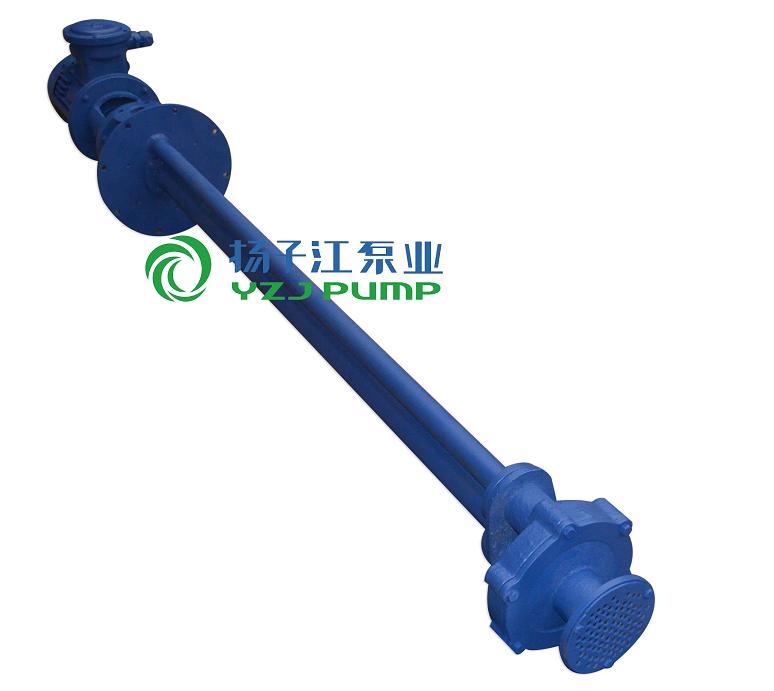

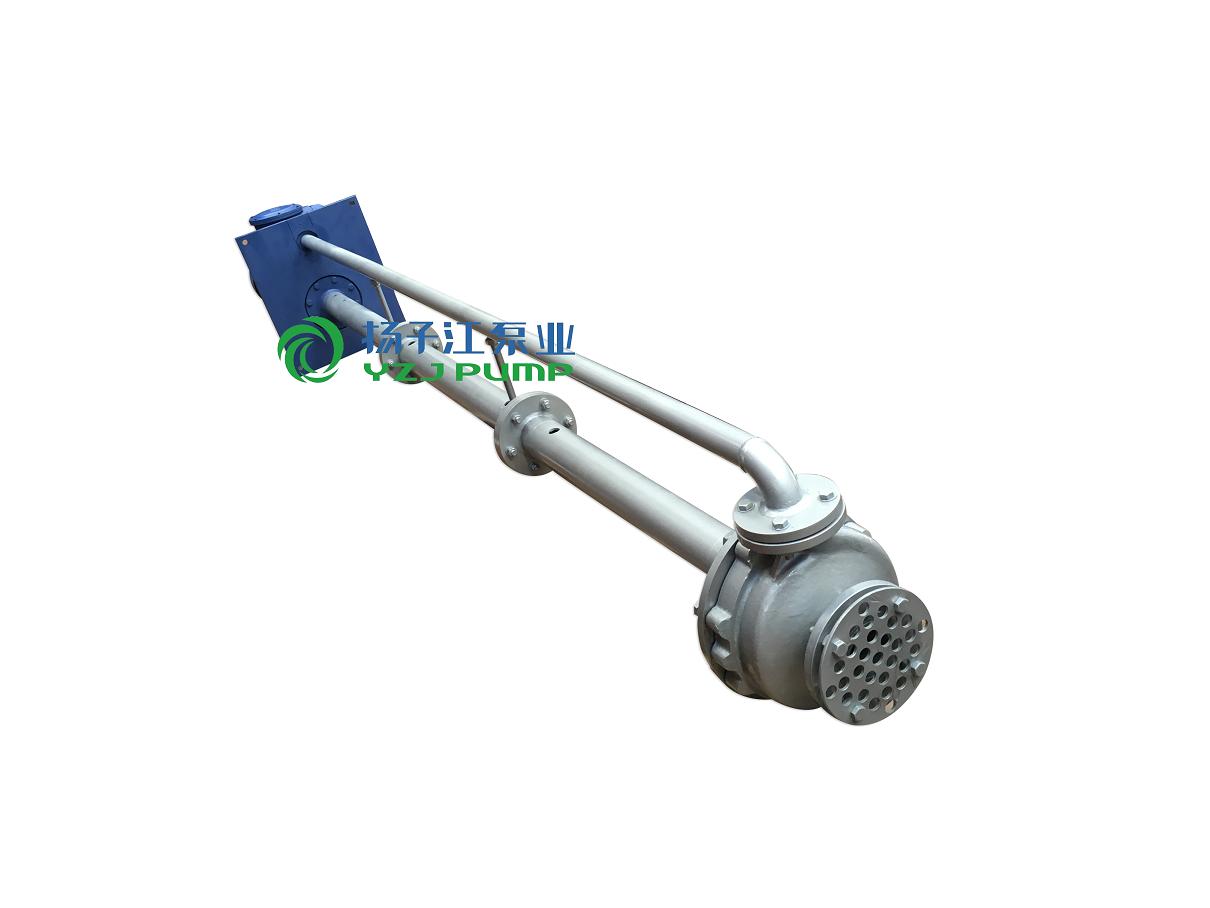

FY系列液下泵|不堵塞液下泵
1、泵為立式液下泵，外形美觀，直接安裝在被輸送介質的儲存器上，無額外占地面積，從而降低了基建投入。
2、取消了機械密封，解決了其他液下泵因機械密封容易磨損而須經常維修的煩惱，節約了泵的運行成本，提高了工作效率。
3、采用了獨特的記心式雙平衡葉輪，供輸送了不含固體顆粒等清潔的介質，振動噪音特低，效率高；采用開式雙平衡葉輪，供輸送不清潔帶有固體顆粒及短纖維的液體，運行平穩、不堵塞。
目錄
FY系列液下泵產品概述
FY系列液下泵是本單位在傳統耐腐蝕液下泵基礎上,融合瑞士蘇爾壽公司同產品的先進技術,經改進設計而生產的新型泵;該泵取消了其他液下泵普遍采用的機械密封和選用了獨特結構的葉輪,使泵高效節能、無泄漏、壽命特長，從而廣泛應用于石油、化工、制藥、造紙、冶金、污水處理等行業。
FY系列液下泵特點
1、泵為立式液下泵，外形美觀，直接安裝在被輸送介質的儲存器上，無額外占地面積，從而降低了基建投入。
2、取消了機械密封，解決了其他液下泵因機械密封容易磨損而須經常維修的煩惱，節約了泵的運行成本，提高了工作效率。
3、采用了獨特的記心式雙平衡葉輪，供輸送了不含固體顆粒等清潔的介質，振動噪音特低，效率高；采用開式雙平衡葉輪，供輸送不清潔帶有固體顆粒及短纖維的液體，運行平穩、不堵塞。
FY系列液下泵型號意義
FY系列液下泵性能參數表
| 型號 |
出口 直徑 mm |
流量 |
揚程 m |
轉速 r/min |
功率（KW） | ||
| m3/h | L/S |
軸 功率 |
電機 功率 |
||||
| 25FT-16 | 25 | 3.6 | 1 | 16 | 2900 | 0.713 | 1.5 |
| 25FY-16A | 25 | 3.27 | 0.91 | 13 | 2900 | 0.713 | 1.5 |
| 25FY-25 | 25 | 3.6 | 1 | 15 | 2900 | 1.16 | 2.2 |
| 25FY-25A | 25 | 3.27 | 0.91 | 20 | 2900 | 1.16 | 2.2 |
| 25FY-41 | 25 | 3.6 | 1 | 41 | 2900 | 2.51 | 4 |
| 25FY-41A | 25 | 3.27 | 0.91 | 33 | 2900 | 2.51 | 3 |
| 40FY-16 | 32 | 7.2 | 2 | 16 | 2900 | 0.78 | 2.2 |
| 40FY-16A | 32 | 6.55 | 1.82 | 13 | 2900 | 0.78 | 1.5 |
| 40FY-26 | 32 | 7.2 | 2 | 26 | 2900 | 1.45 | 3 |
| 40FY-26A | 32 | 6.55 | 1.82 | 21 | 2900 | 1.45 | 3 |
| 40FY-40 | 32 | 7.2 | 2 | 40 | 2900 | 2.53 | 5.5 |
| 40FY-40A | 32 | 6.55 | 1.82 | 32 | 2900 | 2.53 | 5.5 |
| 50FY-16 | 40 | 14.4 | 4 | 16 | 2900 | 1.18 | 3 |
| 50FY-16A | 40 | 13.1 | 3.64 | 13 | 2900 | 1.18 | 3 |
| 50FY-25 | 40 | 14.4 | 4 | 25 | 2900 | 1.96 | 4 |
| 50FY-25A | 40 | 13.1 | 3.64 | 20 | 2900 | 1.96 | 3 |
| 50FY-40 | 40 | 14.1 | 4 | 40 | 2900 | 3.73 | 7.5 |
| 50FY-40A | 40 | 13.1 | 3.64 | 33 | 2900 | 3.73 | 5.5 |
| 65FY-16 | 50 | 28.8 | 8 | 16 | 2900 | 2.16 | 4 |
| 65FY-16A | 50 | 26.2 | 7.28 | 13 | 2900 | 2.16 | 3 |
| 65FY-25 | 50 | 28.8 | 8 | 25 | 2900 | 3.56 | 5.5 |
| 65FY-25A | 50 | 26.2 | 7.28 | 21 | 2900 | 3.56 | 5.5 |
| 65FY-40 | 50 | 28.8 | 8 | 40 | 2900 | 6.04 | 11 |
| 65FY-40A | 50 | 26.2 | 7.28 | 33 | 2900 | 6.04 | 11 |
| 80FY-15 | 65 | 54 | 15 | 15 | 2900 | 3.34 | 7.5 |
| 80FY-15A | 65 | 49.1 | 13.65 | 12 | 2900 | 3.34 | 7.5 |
| 80FY-24 | 65 | 54 | 15 | 24 | 2900 | 5.43 | 11 |
| 80FY-24A | 65 | 49.1 | 13.65 | 20 | 2900 | 5.43 | 11 |
| 80FY-38 | 65 | 54 | 15 | 38 | 2900 | 9.64 | 18.5 |
| 80FY-38A | 65 | 49.1 | 13.65 | 31 | 2900 | 9.64 | 15 |
| 100FY-23 | 80 | 100.8 | 28 | 23 | 2900 | 9.25 | 18.5 |
| 100FY-23A | 80 | 91.8 | 25.5 | 18 | 2900 | 9.25 | 15 |
| 100FY-37 | 80 | 100.8 | 28 | 37 | 2900 | 14.73 | 22 |
| 100FY-37A | 80 | 91.8 | 25.5 | 31 | 2900 | 14.73 | 22 |
|
泵型號 Model |
葉輪 形式Impeller type |
泵額定轉速n=2900r/min speed |
|||||||
|
流量Q M3/h capacity |
揚程H m head |
相對密度<1.0 relative density<1.0 |
相對密度<1.35 relative density<1.35 |
相對密度<1.86 relative density<1.86 |
|||||
| 功率Power |
電機型號 Motor model |
功率Power |
電機型號 Motor model |
功率Power |
電機型號 Motor model |
||||
| kw | kw | kw | |||||||
| 25FY-20 | 3.2 | 20 | 1.1 | Y802-2 | 1.5 | Y90S-2 | 2.2 | Y90L-2 | |
| A | 2.8 | 16 | |||||||
| 25FY-32 | 2.8 | 32 | 3 | Y100L-2 | 3 | Y100L-2 | 4 | Y112M-2 | |
| A | 2.8 | 26 | |||||||
| 25FY-50 | 3.2 | 50 | 5.5 | Y132S1-2 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | |
| A | 2.8 | 41 | |||||||
| 25FY-80 | 3.2 | 80 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | 15 | Y160M2-2 | |
| A | 3 | 70 | 5.5 | Y132S1-2 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | |
| B | 2.8 | 62 | 4 | Y112M-2 | 5.5 | Y132S1-2 | 11 | ||
| 40FY-20 | 6.3 | 20 | 1.5 | Y90S-2 | 2.2 | Y90L-2 | 3 | Y100L-2 | |
| A | 5.5 | 16 | |||||||
| 40FY-32 | 6.3 | 32 | 3 | Y100L-2 | 3 | Y100L-2 | 4 | Y112M-2 | |
| A | 5.5 | 26 | |||||||
| 40FY-50 | 6.3 | 50 | 5.5 | Y132S1-2 | 7.5 | Y132S-2 | 11 | Y160M1-2 | |
| A | 5.5 | 41 | |||||||
| 40FY-80 | 6.3 | 80 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | 15 | Y160M2-2 | |
| A | 5.9 | 70 | 5.5 | Y132S1-2 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | |
| B | 5.6 | 62 | |||||||
| 50FY-20 | 12.5 | 20 | 1.5 | Y90S-2 | 2.2 | Y90L-2 | 3 | Y100L-2 | |
| A | 11.3 | 16.4 | |||||||
| 50FY-32 | 12.5 | 32 | 3 | Y100L-2 | 4 | Y112M-2 | 5.5 | Y132S1-2 | |
| A | 11.3 | 26.4 | 2.2 | Y90L-2 | 3 | Y100L-2 | 4 | Y112M-2 | |
| 50FY-50 | 12.5 | 50 |
5.5 |
Y132S1-2 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | |
| A | 11.3 | 41 | 4 | Y112M-2 | 5.5 | Y132S1-2 | 7.5 | Y132S2-2 | |
| 50FY-80 | 12.5 | 80 | 11 | Y160M1-2 | 15 | Y160M2-2 | 18.5 | Y160L-2 | |
| A | 11.7 | 70 | 11 | Y160M1-2 | 15 | Y160M2-2 | |||
| B | 11 | 62 | 7.5 | Y132S2-2 | |||||
| 65FY-20 | 25 | 20 | 3 | Y100L-2 | 4 | Y112M-2 | 5.5 | Y132S1-2 | |
| A | 22.7 | 16.5 | 2.2 | Y90L-2 | 3 | Y100L-2 | 4 | Y112M-2 | |
| 65FY-32 | 25 | 32 | 5.5 | Y132S1-2 | 5.5 | Y132S1-2 | 7.5 | Y132S2-2 | |
| A | 22.7 | 26.5 | 4 | Y112M-2 | 4 | Y112M-2 | 5.5 | Y132S1-2 | |
| 65FY-50 | A | 25 | 50 | 11 | Y160M1-2 | 11 | Y160M1-2 | 15 | Y160M2-2 |
| 22.7 | 41 | 7.5 | Y132S2-2 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | ||
| 65FY-80 | 25 | 80 | 15 | Y160M2-2 | 18.5 | Y160L-2 | 22 | Y180M-2 | |
| A | 23.4 | 74.8 | 15 | Y160M2-2 | |||||
| B | 22 | 61.8 | 11 | Y160M1-2 | 18.5 | Y160L-2 | |||
| 80FY-20 | 50 | 20 | 5.5 | Y132S1-2 | 5.5 | Y132S1-2 | 7.5 | Y132S2-2 | |
| A | 45.3 | 16.5 | |||||||
| 80FY-32 | 50 | 32 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | 15 | Y160M2-2 | |
| A | 45.4 | 26.4 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | |||
| 80FY-50 | 50 | 50 | 15 | Y160M2-2 | 15 | Y160M2-2 | 22 | Y180M-2 | |
| A | 45.3 | 41 | 11 | Y160M1-2 | 18.5 | Y160L-2 | |||
| 80FY-80 | A | 50 | 80 | 22 | Y180M-2 | 30 | Y200L1-2 | 45 | Y225M-2 |
| 46.8 | 70.5 | 18.5 | Y160L-2 | 22 | Y180M-2 | 30 | Y200L1-2 | ||
| B | 44 | 62.2 | 15 | Y160M2-2 | |||||
| 100FY-20 | 100 | 20 | 11 | Y160M1-2 | 11 | Y160M1-2 | 15 | Y160M2-2 | |
| A | 91.8 | 16.8 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | |||
| 100FY-32 | 100 | 32 | 15 | Y160M2-2 | 18.5 | Y160L-2 | 22 | Y180M-2 | |
| A | 91 | 26.5 | 11 | Y160M1-2 | 15 | Y160M2-2 | 18.5 | Y160L-2 | |
| 100FY-50 | 100 | 50 | 22 | Y180M-2 | 30 | Y200L1-2 | 37 | Y200L2-2 | |
| A | 91 | 41.5 | 18.5 | Y160L-2 | 22 | Y180M-2 | 30 | Y200L1-2 | |
| 100FY-80 | 100 | 80 | 45 | Y225L2-2 | 45 | Y225M-2 | 75 | Y280S-2 | |
| A | 93.5 | 70 | 37 | Y250L2-2 | 55 | Y250M-2 | |||
| B | 87.8 | 61.7 | 30 | Y250L2-2 | 37 | Y250L2-2 | 45 | Y225M-2 | |
| 100FY-20 | 100 | 20 | 11 | Y160M1-2 | 11 | Y160M1-2 | 15 | Y160M2-2 | |
| A | 91.8 | 16.8 | 7.5 | Y132S2-2 | 11 | Y160M1-2 | |||
| 100FY-32 | 100 | 32 | 15 | Y160M2-2 | 18.5 | Y160L-2 | 22 | Y180M-2 | |
| A | 91 | 26.5 | 11 | Y160M1-2 | 15 | Y160M2-2 | 18.5 | Y160L-2 | |
| 100FY-50 | 100 | 50 | 22 | Y180M-2 | 30 | Y200L1-2 | 37 | Y200L2-2 | |
| A | 91 | 41.5 | 18.5 | Y160L-2 | 22 | Y180M-2 | 30 | Y200L1-2 | |
| 100FY-80 | 100 | 80 | 45 | Y225L2-2 | 45 | Y225M-2 | 75 | Y280S-2 | |
| A | 93.5 | 70 | 37 | Y250L2-2 | 55 | Y250M-2 | |||
| B | 87.8 | 61.7 | 30 | Y250L2-2 | 37 | Y250L2-2 | 45 | Y225M-2 | |
|
泵型號 Model |
葉輪形式 Impeller type |
泵額定轉速n=1450r/min speed |
|||||||
|
流量Q M3/h capacity |
揚程H m head |
相對密度<1.0 relative density<1.0 |
相對密度<1.35 relative density<1.35 |
相對密度<1.86 relative density<1.86 |
|||||
|
功率 Powerkw |
電機型號 Motormodel |
功率 Powerkw |
電機型號 Motormodel |
功率 Powerkw |
電機型號 Motormodel |
||||
| 25FY-20 |
|
1.6 | 5 | 0.75 | Y802-4 | 0.75 | Y802-4 | 1.1 | Y90S-4 |
| A | 1.4 | 4 | |||||||
| 25FY-32 |
|
1.6 | 8 | 1.1 | Y90S-4 | 1.1 | Y90S-4 | 1.5 | Y90L-4 |
| A | 1.4 | 6.5 | |||||||
| 25FY-50 |
|
1.6 | 12.5 | 1.1 | Y90S-4 | 1.5 | Y90L-4 | 2.2 | Y100L1-4 |
| A | 1.4 | 10 | Y90S-4 | ||||||
| 25FY-80 |
|
1.6 | 20 |
|
|||||
| A | 1.5 | 17 |
|
||||||
| B | 1.4 | 15 |
|
||||||
| 40FY-20 |
|
3.2 | 5 | 0.75 | Y802-4 | 0.75 | Y802-4 | 1.1 | Y90S-4 |
| A | 2.8 | 4 | |||||||
| 40FY-32 |
|
3.2 | 8 | 1.1 | Y90S-4 | 1.1 | Y90S-4 | 1.5 | Y90L-4 |
| A | 2.8 | 6.5 | |||||||
| 40FY-50 |
|
3.2 | 12.5 | 1.1 | Y90S-4 | 1.5 | Y90L-4 | 2.2 | Y100L1-4 |
| A | 2.8 | 10 | |||||||
| 40FY-80 |
|
3.2 | 20 | 1.5 | Y90L-4 | 2.2 | Y100L1-4 | 3 | Y100L2-4 |
| A | 2.9 | 17 | |||||||
| B | 2.8 | 15 | |||||||
| 50FY-20 |
|
6.3 | 5 | 0.75 | Y802-4 | 0.75 | Y802-4 | 1.1 | Y90S-4 |
| A | 5.7 | 4.1 | |||||||
| A | 5.7 | 6.6 | |||||||
| 50FY-50 |
|
6.3 | 12.5 | 1.1 | Y90S-4 | 1.1 | Y90S-4 | 1.5 | Y90L-4 |
| A | 5.7 | 10.3 | 0.75 | Y802-4 | 1.1 | Y90S-4 | |||
| 50FY-80 |
|
6.3 | 20 | 1.5 | Y90L-4 | 2.2 | Y80L-4 | 3 | Y100L2-4 |
| A | 5.7 | 17.5 | 2.2 | Y100L1-4 | |||||
| B | |||||||||
| 65FY-20 |
|
12.5 | 5 | 0.75 | Y802-4 | 0.75 | Y802-4 | 1.1 | Y90S-4 |
| A | 11.3 | 4.1 | 0.75 | 0.75 | Y802-4 | ||||
| 65FY-32 |
|
12.5 | 8 | 0.75 | 1.1 | Y90S-4 | |||
| A | 11.3 | 6.6 | 0.75 | ||||||
| 65FY-50 | A | 12.5 | 12.5 | 1.1 | Y90S-4 | 1.5 | Y90L-4 | 2.2 | Y100L1-4 |
| 11.3 | 103 | 1.1 | Y90S-4 | 1.1 | Y90S-4 | 1.5 | Y90L-4 | ||
| 65FY-80 |
|
12.5 | 20 | 2.2 | Y100L1-4 | 3 | Y100L2-4 | 4 | Y112M-4 |
| A | 11.7 | 17.5 | 2.2 | Y100L1-4 | 3 | Y100L2-4 | |||
| B | |||||||||
| 80FY-20 |
|
25 | 5 | 0.75 | Y802-4 | 0.75 | Y802-4 | 1.1 | Y90S-4 |
| A | 22.6 | 4.1 | 0.75 | Y802-4 | |||||
| 80FY-32 |
|
25 | 8 | 1.5 | Y90L-4 | 1.5 | Y90L-4 | 2.2 | Y100L1-4 |
| A | 22.7 | 6.6 | 1.1 | Y90S-4 | 1.1 | Y90S-4 | 1.5 | Y90L-4 | |
| 80FY-50 |
|
25 | 12.5 | 2.2 | Y100L1-4 | 2.2 | Y100L1-4 | 3 | Y100L2-4 |
| A | 22.7 | 10.3 | 1.5 | Y90L-4 | 2.2 | Y100L1-4 | |||
| 80FY-80 | A | 25 | 20 | 3 | Y100L2-4 | 4 | Y112M-4 | 5.5 | Y132S-4 |
| 23.4 | 17.6 | 3 | Y100L2-4 | 4 | Y112M-4 | 5.5 | Y132S-4 | ||
| B | |||||||||
| 100FY-32 |
|
50 | 8 | ||||||
| A | 45.5 | 6.6 | 1.5 | Y90L-4 | 2.2 | Y100L1-4 | 3 | Y100L2-4 | |
| 100FY-50 |
|
50 | 12.5 | 4 | Y112M-4 | 4 | Y112M-4 | 5.5 | Y132S-4 |
| A | 45.5 | 10.3 | 3 | Y100L2-4 | 3 | Y100L2-4 | 4 | Y112M-4 | |
| 100FY-80 |
|
50 | 20 | 5.5 | Y132S-4 | 7.5 | Y132M-4 | 11 | Y160M-4 |
| A | 45.5 | 17.4 | 4 | Y112M-4 | 5.5 | Y132S-4 | 7.5 | Y132M-4 | |
| B | 43 | 15 | |||||||
| 125FY-12.5 |
|
100 | 12.5 | 5.5 | Y132S-4 | 7.5 | Y132M-4 | 11 | Y160M-4 |
| A | 91 | 10.3 | 5.5 | Y132S-4 | 7.5 | Y132M-4 | |||
| 125FY-20 |
|
100 | 20 | 11 | Y160M-4 |
|
|
|
|
| A | 91 | 16.5 | 7.5 | Y132M-4 | 11 | Y160M-4 | 15 | Y160L-4 | |
| 125FY-32 |
|
100 | 32 | 18.5 | Y180M-4 | 22 | Y180L-4 | 30 | Y200L-4 |
| A | 91 | 25.5 | 15 | Y160L-4 | 18.5 | Y180M-4 | 30 | Y200L-4 | |
| 125FY-50 |
|
100 | 50 |
|
|
37 | Y225S-4 | 55 | Y250M-4 |
| A | 91 | 41 | 30 | Y200L-4 | 30 | Y200L-4 | 45 | Y225M-4 | |
| 150FY-20 |
|
200 | 20 | 18.5 | Y180M-4 | 22 | Y180L-4 | 30 | Y200L-4 |
| A | 182 | 16.5 | 15 | Y160L-4 | 18.5 | Y180M-4 | 30 | Y200L-4 | |
